SAND DOLLAR® FILTER SYSTEMS (Pentair)

Shop Online » Pentair Product Catalog 2010 » Aboveground Systems » Aboveground Systems, Sand
Audio Accounts Products Images

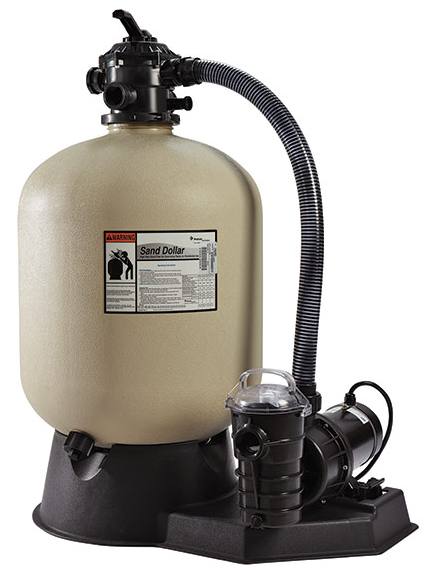

SAND DOLLAR® FILTER SYSTEMS
This product is part of
Pentair Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
So clear, so clean, so easy.


We've combined the highly effective Sand Dollar® Filter Systems filter with the powerful and economical Dynamo® pump to create this high performance system for aboveground pools. With its rugged construction, highly efficient design, and hydraulically matched components, Sand Dollar® Filter Systems provides all the clean, crystal clear water your pool requires. This system provides excellent performance at an affordable price.
  • Combination water and sand drain makes servicing and winterizing fast and easy
  • Optional pad accommodates Rainbow Model 300 off-line Chlorine/Bromine Feeder, P/N 155010. See Chemical Feeders
  • Unique process creates a one-piece, non-corrosive tank of superior strength and durability even in the most demanding of applications
  • Six-position 1 1/2 in. multiport valve
  • Self-priming Dynamo pumps in 3/4, 1, and 1 1/2 hp ratings
STD = Standard, TWL = Twist Lock


PNSD0060DO2260: 2 Speed Pump
Product Information
Name:SAND DOLLAR® FILTER SYSTEMS
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(843) 236-0777
Fax:(843) 236-0778
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:SAND DOLLAR® FILTER SYSTEMS
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

  Description   Our Price (USD)
Part#: PNSD0035DD1160
PUMP HP: 0.75 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.4 sq. ft., FLOW RATE: 35 gpm, TURNOVER CAPACITY - 8 HRS.: 16,800 gal., TURNOVER CAPACITY - 10 HRS.: 21,000 gal., TURNOVER CAPACITY - 12 HRS.: 25,200 gal., SAND REQUIRED: 100 lbs., TANK DIAMETER: 16 in., TANK HEIGHT: 28.5 in.		 Request a Quote

Part#: PNSD0035DD11X0
PUMP HP: 0.75 hp, PUMP CORD: 3 ft. STD, EFFECTIVE FILTRATION AREA: 1.4 sq. ft., FLOW RATE: 35 gpm, TURNOVER CAPACITY - 8 HRS.: 16,800 gal., TURNOVER CAPACITY - 10 HRS.: 21,000 gal., TURNOVER CAPACITY - 12 HRS.: 25,200 gal., SAND REQUIRED: 100 lbs., TANK DIAMETER: 16 in., TANK HEIGHT: 28.5 in.		 Request a Quote

Part#: PNSD0035DE1160
PUMP HP: 1 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.4 sq. ft., FLOW RATE: 35 gpm, TURNOVER CAPACITY - 8 HRS.: 16,800 gal., TURNOVER CAPACITY - 10 HRS.: 21,000 gal., TURNOVER CAPACITY - 12 HRS.: 25,200 gal., SAND REQUIRED: 100 lbs., TANK DIAMETER: 16 in., TANK HEIGHT: 28.5 in.		 Request a Quote

Part#: PNSD0040DE1160
PUMP HP: 1 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0040DE11X0
PUMP HP: 1 hp, PUMP CORD: 3 ft. STD, EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0040DE1260
PUMP HP: 1 hp, PUMP CORD: 3 ft. TWL, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0040DO1160
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0040DO11X0
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. STD, EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0040DO1260
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. TWL, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 1.8 sq. ft., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal., SAND REQUIRED: 150 lbs., TANK DIAMETER: 19 in., TANK HEIGHT: 34 in.		 Request a Quote

Part#: PNSD0060DO1160
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 2.3 sq. ft., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal., SAND REQUIRED: 250 lbs., TANK DIAMETER: 22 in., TANK HEIGHT: 35.5 in.		 Request a Quote

Part#: PNSD0060DO11X0
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. STD, EFFECTIVE FILTRATION AREA: 2.3 sq. ft., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal., SAND REQUIRED: 250 lbs., TANK DIAMETER: 22 in., TANK HEIGHT: 35.5 in.		 Request a Quote

Part#: PNSD0060DO1260
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. TWL, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 2.3 sq. ft., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal., SAND REQUIRED: 250 lbs., TANK DIAMETER: 22 in., TANK HEIGHT: 35.5 in.		 Request a Quote

Part#: PNSD0060DO2260
PUMP HP: 1.5 hp, PUMP CORD: 3 ft. TWL, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 2.3 sq. ft., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal., SAND REQUIRED: 250 lbs., TANK DIAMETER: 22 in., TANK HEIGHT: 35.5 in.		 Request a Quote

Part#: PNSD0060DP1160
PUMP HP: 2 hp, PUMP CORD: 3 ft. STD, HOSE KIT: 6 ft., EFFECTIVE FILTRATION AREA: 2.3 sq. ft., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal., SAND REQUIRED: 250 lbs., TANK DIAMETER: 22 in., TANK HEIGHT: 35.5 in.		 Request a Quote

Part#: SD35
FILTER AREA: 1.4 sq. ft, VERTICAL CLEARANCE: 36.75", FILTER DIAMETER: 16.5", REQUIRED SAND: 100 lbs., FLOW RATE: 35 gpm, TURNOVER CAPACITY - 8 HRS.: 16,800 gal., TURNOVER CAPACITY - 10 HRS.: 21,000 gal., TURNOVER CAPACITY - 12 HRS.: 25,200 gal.		 Request a Quote

Part#: SD40
FILTER AREA: 1.8 sq. ft, VERTICAL CLEARANCE: 46.00", FILTER DIAMETER: 19.5", REQUIRED SAND: 150 lbs., FLOW RATE: 40 gpm, TURNOVER CAPACITY - 8 HRS.: 19,200 gal., TURNOVER CAPACITY - 10 HRS.: 24,000 gal., TURNOVER CAPACITY - 12 HRS.: 28,800 gal.		 Request a Quote

Part#: SD60
FILTER AREA: 2.3 sq. ft, VERTICAL CLEARANCE: 50.5", FILTER DIAMETER: 22.5", REQUIRED SAND: 200 lbs., FLOW RATE: 60 gpm, TURNOVER CAPACITY - 8 HRS.: 28,800 gal., TURNOVER CAPACITY - 10 HRS.: 36,000 gal., TURNOVER CAPACITY - 12 HRS.: 43,200 gal.		 Request a Quote
